Scientists in Morocco have developed a photovoltaic-thermal panel that makes use of a channel-box warmth exchanger made up of 94 channels instantly connected to the PV module. The simulated design is reported to lead to an total panel effectivity of over 90% and good outcomes by way of temperature uniformity.
A gaggle of scientists led by Chouaïb Doukkali University in Morocco designed a photovoltaic-thermal photo voltaic panel primarily based on a channel-box warmth exchanger geared toward bettering convective trade.
They defined that the proposed design affords the benefit that all the floor of the panel is in direct contact with the liquid, whereas the sheet and tube PVT modules provide a small contact space between the sheet and the tube. “Furthermore, this proposal seeks to unravel the issue of temperature inconsistency, which impacts the steadiness of PV panels,” they added.
The proposed warmth exchanger consists of three zones for coolant inlet (AZ), warmth trade (ZE), and fluid evacuation (VZ), respectively. It makes use of water as a cooling fluid, which flows by way of the warmth exchanger to make use of the warmth produced by the PV module. “The EZ consists of an alveolar plate, which consists of a flat higher wall that contacts the again of the PV module, and a decrease wall,” the group specified. “These partitions have a thickness of 0.4 mm, which facilitates optimum warmth switch between the PV module and the encircling cooling fluid contained in the channels.”

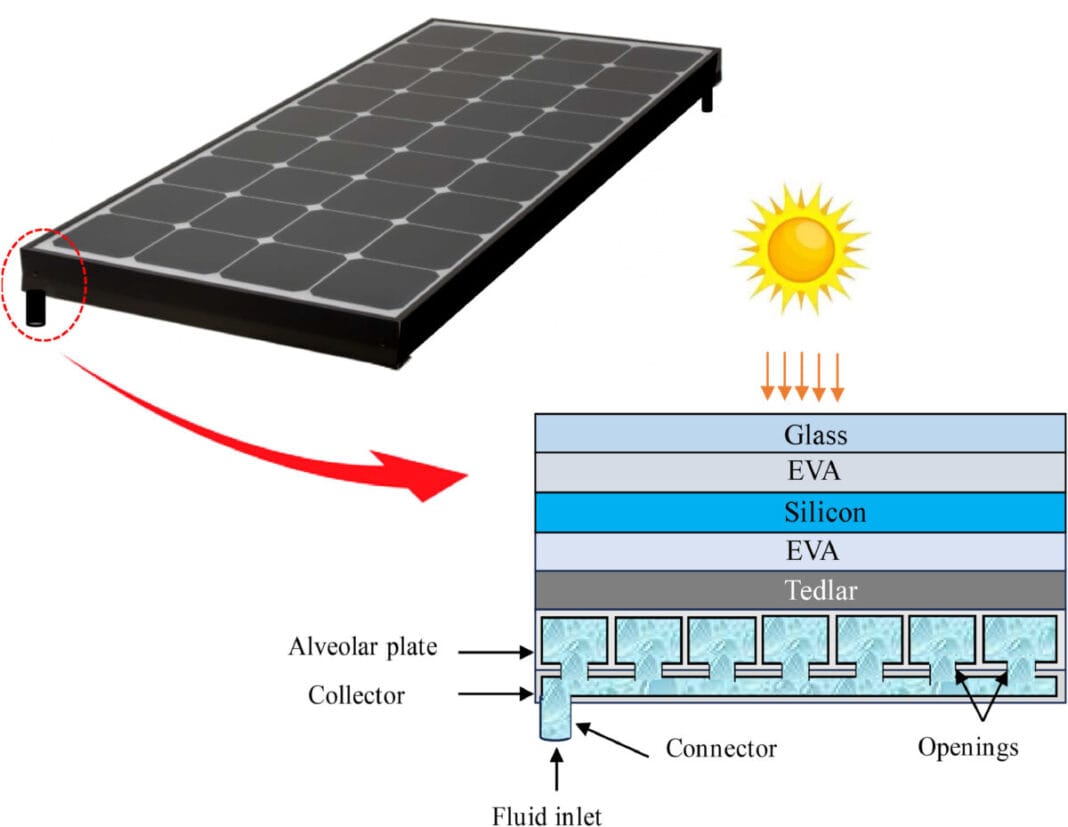

The warmth exchanger is split into two zones – an aluminum strong zone and a fluid zone the place water flows contained in the strong zone. The PVT panel additionally features a photovoltaic module, a Tedlar layer, two clear layers of ethyl vinyl acetate (EVA), and a glass cowl plate.
Using COMSOL software program, the analysis staff performed a sequence of simulations to evaluate the efficiency of the system primarily based on photo voltaic irradiance and volumetric movement price. It is believed to be in a gentle state and no mud has amassed on it. The evaluation additionally considers parameters akin to photo voltaic cell temperature, coolant outlet temperature, cell effectivity and yield, in addition to recovered thermal vitality, thermal effectivity, and total effectivity.
“In COMSOL, PVT and PV modules are computed utilizing a physics-controlled meshing sequence,” the lecturers defined. “This methodology ends in a progressive improve within the variety of grid components in every restrict, which permits correct decision of warmth switch phenomena and movement fields.”
The simulations present that the movement price is a key issue within the efficiency of the panel, that each 10 L/h improve in liquid movement reduces the temperature of the photo voltaic cell by round 0.885 C, which in flip outcomes with a rise in energy yield of about 0.798 W. Furthermore, each 10 L/h improve in fluid movement will increase the cell effectivity by roughly 0.051%.
The PVT panel was additionally discovered to realize {an electrical}, thermal, and total effectivity of roughly 12.11%, 78.59%, and 90.7%, respectively. “If the movement price and inlet temperature are maintained at 180 L/h and 29 C, in reality, the general effectivity of the system will increase from 83.15 to 90.7% whereas the photo voltaic irradiance will increase from 2 x 10.2 to 103 W/m2. So, for each improve of 102 W/m2 of photo voltaic irradiance, there’s a 0.94% enchancment in total effectivity,” the lecturers emphasised.
The system is launched within the paper “Numerical research of a water-based photovoltaic-thermal (PVT) hybrid photo voltaic collector with a brand new warmth exchanger,” just lately revealed in e-Prime – Advances in Electrical Engineering, Electronics and Energy.
“The proposed PVT-C affords good outcomes by way of temperature uniformity and total efficiency,” the scientists concluded. “In this context, it’s price recommending the conclusion of this new PVT-C, which could be simply built-in into the constructing and could be tailored to satisfy the wants of air or water in response to the seasons and the thermal necessities of the constructing. “
